GTK-server interface

Introduction

The GTK-server interface module (gsv) in the FFL library implements an ANS compatible way to use the GTK library. This module is added in version 0.8.0.

To actually display the GUI, the GTK-server tool is used. This tool can receive GTK calls through a pipe or TCP-IP connection from an external process (the forth engine).

The gsv module supports this by connecting to the GTK-server, translating the forth calls to GTK-server calls, sending the calls, receiving the response and translating the response back.

This way the module makes it possible for a forth engine to display a GTK GUI.

Currently the module supports UNIX/LINUX.

Installation

You will need the GTK library and the GTK-server application. See the relevant docs for installing.

Getting Started

For using the GTK-server it is important to read the relevant documentation. In particular the documentation of the gtk-server.cfg file is very important. This file describes what requests can be made to the GTK-server. By adding or deleting calls in this file, you can optimize the gtk-server.cfg file for your project. For example the gtk-server.cfg file used in the examples directory of the ffl library, is expanded with a number of requests to make the examples possible.

For a project using GTK and Forth, the best setup is a dedicated directory. In this directory you can put the project specific gtk-server.cfg file. This file can then be used by the GTK-server and the gsv-module. As a result both use the same configuration file.

After a gtk-server.cfg is copied to the project directory, you can start the GTK-server (on linux) in this project directory:

gtk-server -fifo=prj-fifo &

The prj-fifo is the fifo filename that is used to communicate with the GTK-server. You can use any file name. All the examples in the ffl library use the 'ffl-fifo' filename.

The next step is to start the forth engine (gforth):

gforth

In gforth you should include the gsv-module:

include ffl/gsv.fs

Then read the gtk-server.cfg file and open a connection to the GTK-server:

s" gtk-server.cfg" s" prj-fifo" gsv+open throw

The gsv+open call returns an ior. If it is 0, there is a connection to the GTK-server and the gtk-server.cfg is processed.

From now on you can send GTK calls to the GTK-server. First initialise the toolkit:

gtk_init

Then create a toplevel window and save the handle in the window value:

GTK_WINDOW_TOPLEVEL gtk_window_new VALUE window

Give the window a title:

s" Title: hello world" window gtk_window_set_title

Show the window:

window gtk_widget_show

Wait for events:

s" WAIT" gtk_server_callback 2drop

The window is shown. After pressing the close button of the window ('X'), the call will return.

Then enter:

0 gtk_exit

This will close all windows and stop the GTK-server process.

Examples

There are a number of examples in the library available. These are inspired by the GTK-tutorial.

The examples use the fifo name: ffl-fifo. To run an example start the GTK-server in the example directory:

gtk-server -fifo=ffl-fifo &

Then start one of the following forth engines with the example file:

gforth gsv_expl.fs
pfe gsv_expl.fs
spf4 ffl/config.fs gsv_expl.fs
lxf include gsv_expl.fs
vfxlin include gsv_expl.fs

The following examples are shipped with the library (in the examples directory):

Example file Description
gsv_expl.fs Hello World
gsv2_expl.fs Button Widget
gsv3_expl.fs Box Packing
gsv4_expl.fs Table Packing
gsv5_expl.fs Pixmap Button
gsv6_expl.fs Toggle Button Widget
gsv7_expl.fs Adjustment Widget
gsv8_expl.fs Label Widget
gsv9_expl.fs Arrow & Tooltip Widget
gsv10_expl.fs Timer & Progress bar Widget
gsv12_expl.fs Statusbar Widget
gsv13_expl.fs Entry Widget
gsv14_expl.fs Spinbutton Widget
gsv17_expl.fs File Chooser Dialog
gsv18_expl.fs Event Box
gsv19_expl.fs Fixed Container
gsv20_expl.fs Frame
gsv21_expl.fs Aspect Frame
gsv23_expl.fs Scrolled Window
gsv24_expl.fs Button Box
gsv26_expl.fs Notebook Widget
gsv27_expl.fs Menu
gsv99_expl.fs Mandelbrot

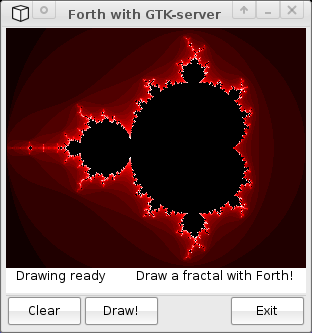

Mandelbrot

Trouble shooting

My experience is that the GTK-server will not always clean up the fifo file after an error. You can manually remove it (on linux):

rm prj-fifo

The GTK-server is running as a process. You can see the process ID by entering:

ps -e | grep gtk-server

This ID can then be used to stop the GTK-server after problems:

kill ID

How it works

The GTK-server uses the gtk-server.cfg file to determine which requests can be made and what the arguments are for that requests.

To keep the gsv-module in sync with the GTK-server, the module reads the gtk-server.cfg file. It parses the file and translates the contents into forth words and forth constants in the dictionary.

Own gtk-server.cfg

If you use your own gtk-server.cfg, then make sure that the definition of gtk_server_enable_c_string_escaping is present in your configuration file. The gsv module uses this call to check if the gtk calls are loaded, if the connection to the gtk-server is working and to support quoted strings.

If this call is missing in your gtk-server.cfg file, the gsv module will not work.

Type conversion

The gsv-module translates the arguments of the requests in the gtk-server.cfg file to the following forth stack data types :

gtk-server.cfg argument datatype forth stack data type
NULL
WIDGET n
POINTER n
BOOL flag
STRING c-addr u
INT n
LONG d
DOUBLE r
FLOAT r
ENUM n
MACRO c-addr u
BASE64 c-addr u
DATA n
CLASS n
VARARGS i*x j*r c-addr u

Note: The argument STRING is quoted by the gsv-module.

The return value of the requests in the gtk-server.cfg file is translated to the following forth data type:

gtk-server.cfg returnvalue datatype forth stack data type
NONE
VOID
WIDGET n
POINTER n
ADDRESS n
BOOL flag
STRING c-addr u
INT n
LONG d
DOUBLE r
FLOAT r

Note: Keep in mind that returned addresses and pointers refer to memory in the GTK-server and not in the forth engine.

VARARGS arguments

The VARARGS argument is special. It expects different arguments for different calls. To implement this the gsv module expects for GTKserver calls with VARARGS a format string and the variable arguments.

For example if the next call is defined in the gtk-server.cfg:

FUNCTION_NAME = callWithVARARGS, NONE, NONE, 2, INT, VARARGS

you can call this function in Forth by:

s" String" 10 s" %d %q" 15 callWithVARARGS

in which case 15 is the normal INT argument and s" %d %q" defines the variable arguments. The values for the variable arguments are s" String" and 10.

Events

Special attention should be given to the event handling by the GTK-server. The server links a default event to most widget types. If this default event is triggered, the widget ID is returned by gtk_server_callback. See the gtk-server.cfg file for the default event per widget type.

If another event triggering is necessary for a widget, the gtk_server_connect request must be used to connect an event to a widget. According to the gtk-server.cfg file, the type of the ID for this event is string, but this is not always convenient. So the gsv-module also defines: gsv+server-connect and gsv+server-connect-after. Those two words use the same parameters as the gtk_server_connect call, except that the event ID is numerically.

Events that are triggered, are returned to your program via the gtkservercallback request. According to the gtk-server.cfg file this request returns the event in a string. If you make sure that all events are numerically, you can easily convert the string event ID to a number and use the CASE - OF - ENDOF - ENDCASE construct to check which event is triggered. Most examples in the library use this method.

Another method is the use of the AVL binary tree. The key in this tree is the numerical event ID and the linked data is the execution token (XT) of the forth word that must be executed when the event is triggered. When an event is created, the event ID and the XT of the callback word are stored in the tree. In the mainloop the event ID, that is returned by gtkservercallback, is fed to the tree. The tree will return the callback XT which is then executed. See Menu for an example using this method.
